Behringer® Compact Hygienic Rigid Tube Hangers (CHR)

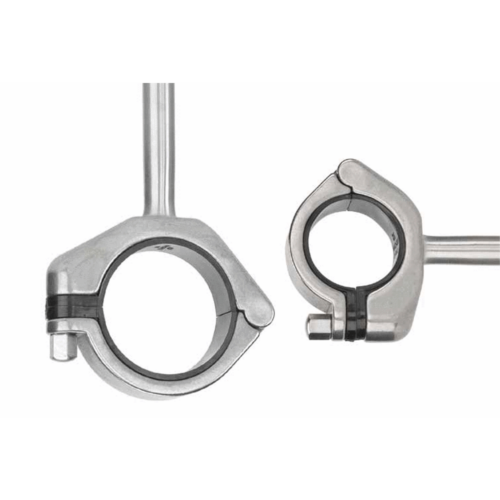

- Behringer® Tube Hanger with Welded Hanger Rod
- One-Piece “C” Style Clamp in 304 or 316 Stainless Steel
- Welded Rods Come Standard in 6″ or 12″ Lengths
- Rod Diameters Range from 1/2″ to 1″
- Plastic Anchor Insert or Guide Insert Available
Behringer® Compact Hygienic Rigid Tube Hangers (CHR-PS/CHR-PG)
Behringer® Hygienic Tube Supports are designed to meet the high demands of process piping in hygienic service applications and are available in a wide range of sizes and configurations and are offered with anchor or guide inserts. Securely suspend your sanitary tubing with these rigid welded mount tube hangers.
This rigid welded mount tube hanger features a "C" style clamp, available in 304 or 316L stainless steel, that opens and closes with a secure acorn bolt for maximum maneuverability and is available for tube outer dimensions from 1/2" to 6".
Anchor or Guide inserts are available in PESU (Polyethersulfone) plastic. An Anchor insert (Black) is a rigid device used to prevent all pipe displacement at the point of application. It is used to fix selected points on a piping system to control forces, moments, and movement in each section of the total pipe run. A Guide insert (Gray) allows for free axial movement for the thermal expansion of the tube or pipe, ensuring proper alignment and elevation for drainage. It is designed to permit pipe movement in a predetermined direction while preventing undesirable movement in other directions.
The rigid welded hanger is ideal for supporting vertical runs and reducing vibrations. Rod lengths come standard in 6" or 12" options. Custom lengths available, contact our sales team. This hygienic hanger connection does not offer the dynamic slope adjustment feature found in the Behringer® Dynamic Mount Tube Hanger.

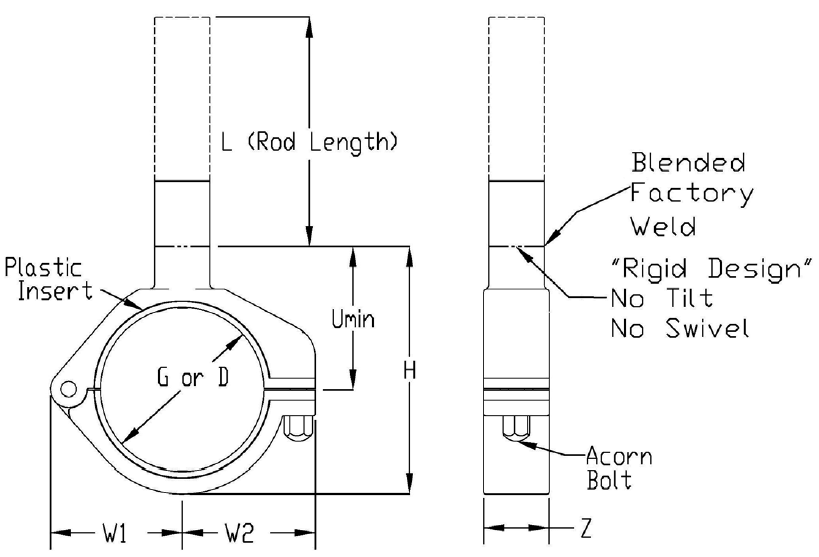

Compact Hygienic Welded Rigid Tube Hanger Dimensions
| Size (Tube OD) |
Part No. | W1 (in.) | W2 (in.) | Z (in.) | U (in.) | H (in.) | Rod Length (L) | Rod Dia. | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | CHR-050 | 0.93 | 1.02 | 0.75 | 1.08 | 1.67 | 6"-96" | 1/2" | 0.58 |
| 3/4" | CHR-075 | 1.06 | 1.15 | 0.75 | 1.23 | 1.93 | 6"-96" | 1/2" | 0.60 |
| 1" | CHR-100 | 1.20 | 1.28 | 0.75 | 1.35 | 2.19 | 6"-96" | 1/2" | 0.66 |
| 1.5" | CHR-150 | 1.45 | 1.56 | 0.75 | 1.66 | 2.74 | 6"-96" | 1/2" | 0.72 |
| 2" | CHR-200 | 1.74 | 1.79 | 0.75 | 1.85 | 3.18 | 6"-96" | 1/2" | 0.80 |
| 2.5" | CHR-250 | 2.02 | 2.04 | 1.00 | 2.18 | 3.77 | 6"-96" | 5/8" | 1.61 |
| 3" | CHR-300 | 2.27 | 2.29 | 1.00 | 2.34 | 4.18 | 6"-96" | 5/8" | 1.67 |
| 3.5" | CHR-350 | 2.76 | 2.79 | 1.00 | 3.08 | 5.42 | 6"-96" | 3/4" | 1.86 |
| 4" | CHR-400 | 2.76 | 2.79 | 1.00 | 3.08 | 5.42 | 6"-96" | 3/4" | 1.86 |
| 6" | CHR-600 | 3.98 | 4.46 | 1.50 | 4.45 | 8.03 | 6"-96" | 1" | 6.21 |
