Behringer® Smooth Bore Threaded Tube Hangers (HSBT/HSBX)
- Behringer® Threaded Smooth Bore Plate Mount
- Tube Mount Available in 304 or 316 Stainless Steel
- Blue Polypropylene or Beige Santoprene Inserts

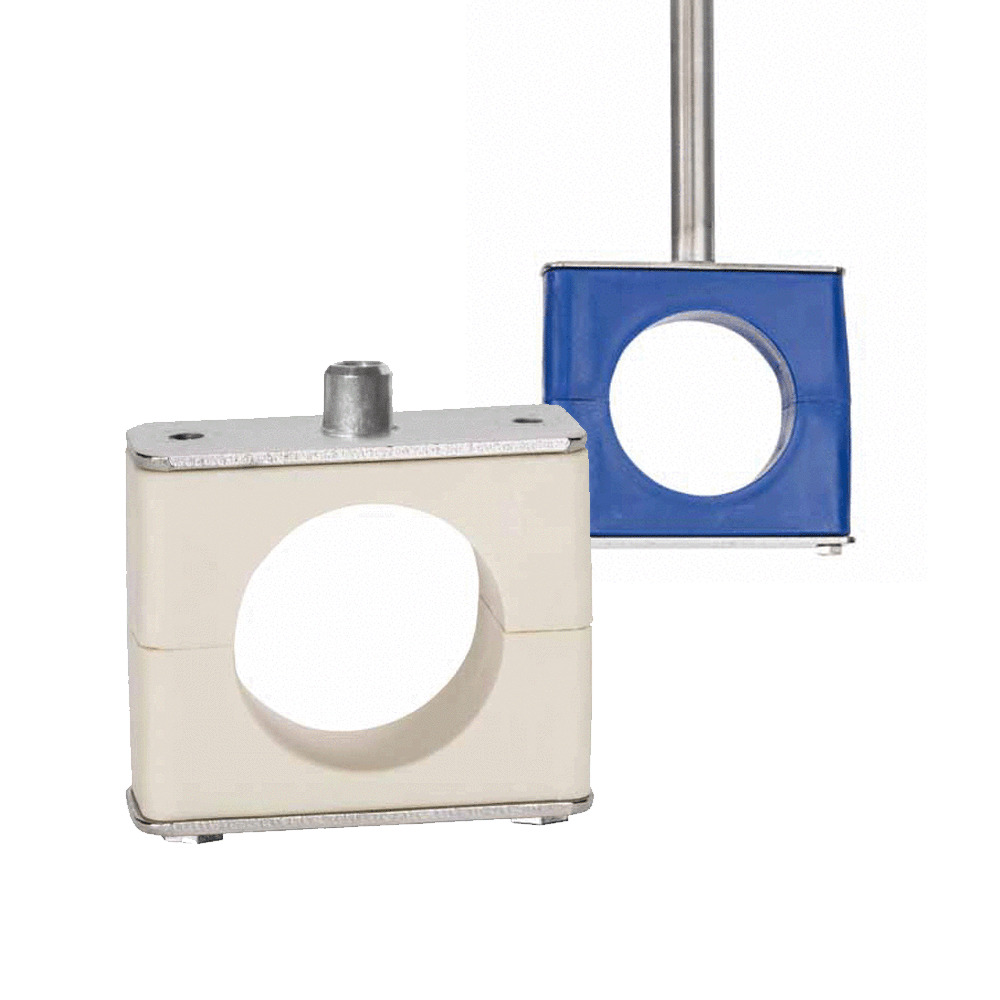

Behringer® Smooth Bore Threaded Hang Plate Tube Hangers (HSBT/HSBX)
Behringer® Smooth Bore Tube Supports are designed to meet the high demands of process piping in hygienic service applications and are available in a wide range of sizes and configurations and are offered with blue polypropylene (sizes 1/4" - 4") or beige santoprene (6") inserts. Securely suspend your sanitary tubing with these weldable mount tube hangers.
This smooth bore threaded plate mount is available in 304 or 316 stainless steel that opens and closes with two secure hex bolts for maximum security and is available for tube outer dimensions from 1/4" to 6".
Plastic inserts are used to fix selected points on a piping system to control forces, moments, and movement in each section of the total pipe run. Thermal properties for blue polypropylene: Intermittent exposure from -22°F to 212°F and continuous exposure from -22°F to 194°F. Thermal properties for beige santoprene: Intermittent exposure from -40°F to 302°F and continuous exposure from -40°F to 275°F.

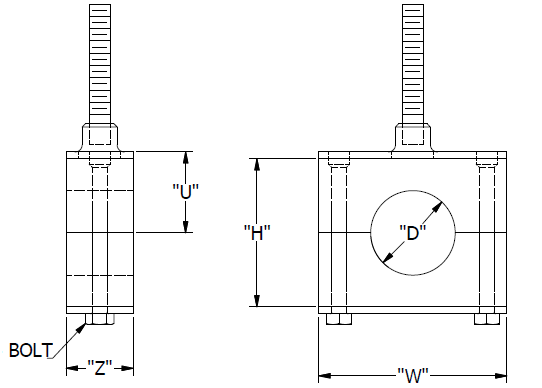

Smooth Bore Hang Plate Mount Tube Hanger Dimensions
| Tube Size (D) in. | Width (W) in. | Height (H) in. | Depth (Z) in. | U in. | Bolt - Thread | Weight (lbs) | Insert Material |
|---|---|---|---|---|---|---|---|
| 1/4" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.30 | Blue Polypropylene |
| 3/8" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.30 | Blue Polypropylene |
| 1/2" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.30 | Blue Polypropylene |
| 3/4" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.30 | Blue Polypropylene |
| 1" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.30 | Blue Polypropylene |
| 1.5" | 3.34 | 2.63 | 1.22 | 1.44 | 1/4" - 20 | 0.50 | Blue Polypropylene |
| 2" | 3.34 | 2.63 | 1.22 | 1.44 | 1/4" - 20 | 0.50 | Blue Polypropylene |
| 2.5" | 5.02 | 4.38 | 1.22 | 2.31 | 1/4" - 20 | 1.10 | Blue Polypropylene |
| 3" | 5.02 | 4.38 | 1.22 | 2.31 | 1/4" - 20 | 1.10 | Blue Polypropylene |
| 4" | 5.77 | 4.80 | 1.22 | 2.54 | 1/4" - 20 | 1.30 | Blue Polypropylene |
| 6" | 8.88 | 7.65 | 1.50 | 4.01 | 3/8" - 16 | 4.40 | Beige Santoprene |
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| HSBT3025-PP-304 | Behringer® 1/4″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT3025-PP-304 |
|
| HSBT30375-PP-304 | Behringer® 3/8″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT30375-PP-304 |
|
| HSBT3050-PP-304 | Behringer® 1/2″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT3050-PP-304 |
|
| HSBT3075-PP-304 | Behringer® 3/4″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT3075-PP-304 |
|
| HSBT6100-PP-304 | Behringer® 1″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT6100-PP-304 |
|
| HSBT6150-PP-304 | Behringer® 1.5″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT6150-PP-304 |
|
| HSBT6200-PP-304 | Behringer® 2″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT6200-PP-304 |
|
| HSBT7250-PP-304 | Behringer® 2.5″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT7250-PP-304 |
|
| HSBT7300-PP-304 | Behringer® 3″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT7300-PP-304 |
|
| HSBT7A400-PP-304 | Behringer® 4″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT7A400-PP-304 |
|
| HSBT8600-SP-304 | Behringer® 6″ Smooth Bore Threaded Tube Hanger, 304 Stainless Steel, HSBT8600-SP-304 |
|
| HSBX3025-PP-316 | Behringer® 1/4″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX3025-PP-316 |
|
| HSBX30375-PP-316 | Behringer® 3/8″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX30375-PP-316 |
|
| HSBX3050-PP-316 | Behringer® 1/2″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX3050-PP-316 |
|
| HSBX3075-PP-316 | Behringer® 3/4″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX3075-PP-316 |
|
| HSBX6100-PP-316 | Behringer® 1″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX6100-PP-316 |
|
| HSBX6150-PP-316 | Behringer® 1.5″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX6150-PP-316 |
|
| HSBX6200-PP-316 | Behringer® 2″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX6200-PP-316 |
|
| HSBX7250-PP-316 | Behringer® 2.5″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX7250-PP-316 |
|
| HSBX7300-PP-316 | Behringer® 3″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX7300-PP-316 |
|
| HSBX7A400-PP-316 | Behringer® 4″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX7A400-PP-316 |
|
| HSBX8600-SP-316 | Behringer® 6″ Smooth Bore Threaded Tube Hanger, 316 Stainless Steel, HSBX8600-SP-316 |
