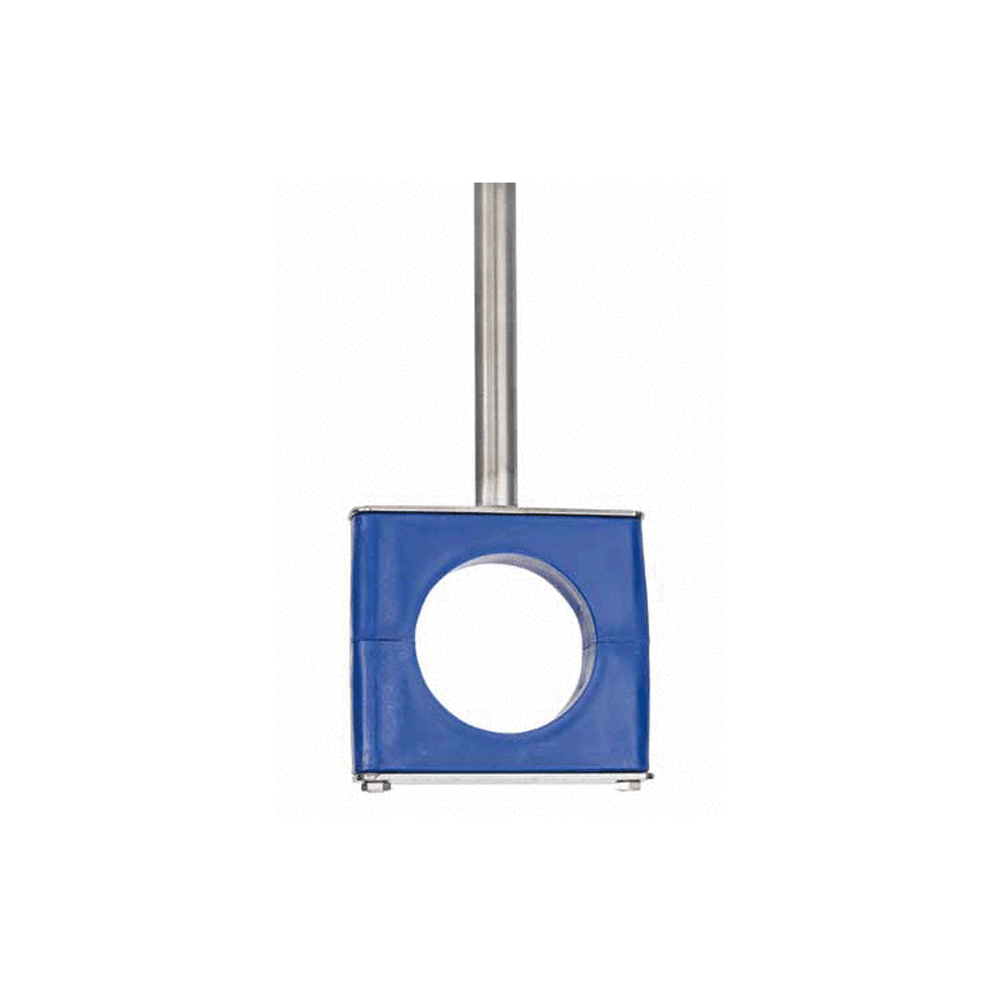

Behringer® Smooth Bore Welded Rod Tube Hangers (RSBT/RSBX)
- Behringer® Welded Smooth Bore Plate Mount with Rod
- Tube Mount Available in 304 or 316 Stainless Steel
- Rods Come Standard in 6″ or 12″ Lengths
- Blue Polypropylene or Beige Santoprene Inserts
Behringer® Smooth Bore Welded Rod Tube Hangers (RSBT/RSBX)
Behringer® Smooth Bore Tube Supports are designed to meet the high demands of process piping in hygienic service applications and are available in a wide range of sizes and configurations and are offered with blue polypropylene (sizes 1/4" - 4") or beige santoprene (6") inserts. Securely suspend your sanitary tubing with these welded rod mount tube hangers.
This smooth bore mount is available in 304 or 316 stainless steel that opens and closes with two secure hex bolts for maximum security and is available for tube outer dimensions from 1/4" to 6".
Plastic inserts are used to fix selected points on a piping system to control forces, moments, and movement in each section of the total pipe run. Thermal properties for blue polypropylene: Intermittent exposure from -22°F to 212°F and continuous exposure from -22°F to 194°F. Thermal properties for beige santoprene: Intermittent exposure from -40°F to 302°F and continuous exposure from -40°F to 275°F. Rod lengths come standard in 6" or 12". Custom lengths available, contact our sales team.
Smooth Bore Welded Mount Tube Hanger Dimensions
| Tube Size (D) in. | Width (W) in. | Height (H) in. | Depth (Z) in. | U in. | Bolt - Thread | Weight (lbs) | Insert Material |
|---|---|---|---|---|---|---|---|
| 1/4" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.40 | Blue Polypropylene |
| 3/8" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.40 | Blue Polypropylene |
| 1/2" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.40 | Blue Polypropylene |
| 3/4" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.40 | Blue Polypropylene |
| 1" | 1.88 | 1.38 | 1.22 | 0.81 | 1/4" - 20 | 0.40 | Blue Polypropylene |
| 1.5" | 3.34 | 2.63 | 1.22 | 1.44 | 1/4" - 20 | 0.60 | Blue Polypropylene |
| 2" | 3.34 | 2.63 | 1.22 | 1.44 | 1/4" - 20 | 0.60 | Blue Polypropylene |
| 2.5" | 5.02 | 4.38 | 1.22 | 2.31 | 1/4" - 20 | 1.10 | Blue Polypropylene |
| 3" | 5.02 | 4.38 | 1.22 | 2.31 | 1/4" - 20 | 1.10 | Blue Polypropylene |
| 4" | 5.77 | 4.80 | 1.22 | 2.54 | 1/4" - 20 | 1.50 | Blue Polypropylene |
| 6" | 8.88 | 7.65 | 1.50 | 4.01 | 3/8" - 16 | 4.40 | Beige Santoprene |
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| RSBT3025-PP-06-304 | Behringer® 1/4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT3025-PP-12-304 | Behringer® 1/4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT30375-PP-06-304 | Behringer® 3/8″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT30375-PP-12-304 | Behringer® 3/8″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT3050-PP-06-304 | Behringer® 1/2″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT3050-PP-12-304 | Behringer® 1/2″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT3075-PP-06-304 | Behringer® 3/4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT3075-PP-12-304 | Behringer® 3/4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT6100-PP-06-304 | Behringer® 1″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT6100-PP-12-304 | Behringer® 1″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT6150-PP-06-304 | Behringer® 1.5″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT6150-PP-12-304 | Behringer® 1.5″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT6200-PP-06-304 | Behringer® 2″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT6200-PP-12-304 | Behringer® 2″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT7250-PP-06-304 | Behringer® 2.5″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT7250-PP-12-304 | Behringer® 2.5″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT7300-PP-06-304 | Behringer® 3″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT7300-PP-12-304 | Behringer® 3″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT7A400-PP-06-304 | Behringer® 4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT7A400-PP-12-304 | Behringer® 4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBT8600-SP-06-304 | Behringer® 6″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 304 |
|
| RSBT8600-SP-12-304 | Behringer® 6″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 304 |
|
| RSBX3025-PP-06-316 | Behringer® 1/4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX3025-PP-12-316 | Behringer® 1/4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX30375-PP-06-316 | Behringer® 3/8″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX30375-PP-12-316 | Behringer® 3/8″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX3050-PP-06-316 | Behringer® 1/2″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX3050-PP-12-316 | Behringer® 1/2″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX3075-PP-06-316 | Behringer® 3/4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX3075-PP-12-316 | Behringer® 3/4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX6100-PP-06-316 | Behringer® 1″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX6100-PP-12-316 | Behringer® 1″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX6150-PP-06-316 | Behringer® 1.5″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX6150-PP-12-316 | Behringer® 1.5″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX6200-PP-06-316 | Behringer® 2″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX6200-PP-12-316 | Behringer® 2″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX7250-PP-06-316 | Behringer® 2.5″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX7250-PP-12-316 | Behringer® 2.5″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX7300-PP-06-316 | Behringer® 3″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX7300-PP-12-316 | Behringer® 3″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX7A400-PP-06-316 | Behringer® 4″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX7A400-PP-12-316 | Behringer® 4″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
|
| RSBX8600-SP-06-316 | Behringer® 6″ Smooth Bore Welded Tube Hanger, 6″ Hanger Rod, 316 |
|
| RSBX8600-SP-12-316 | Behringer® 6″ Smooth Bore Welded Tube Hanger, 12″ Hanger Rod, 316 |
