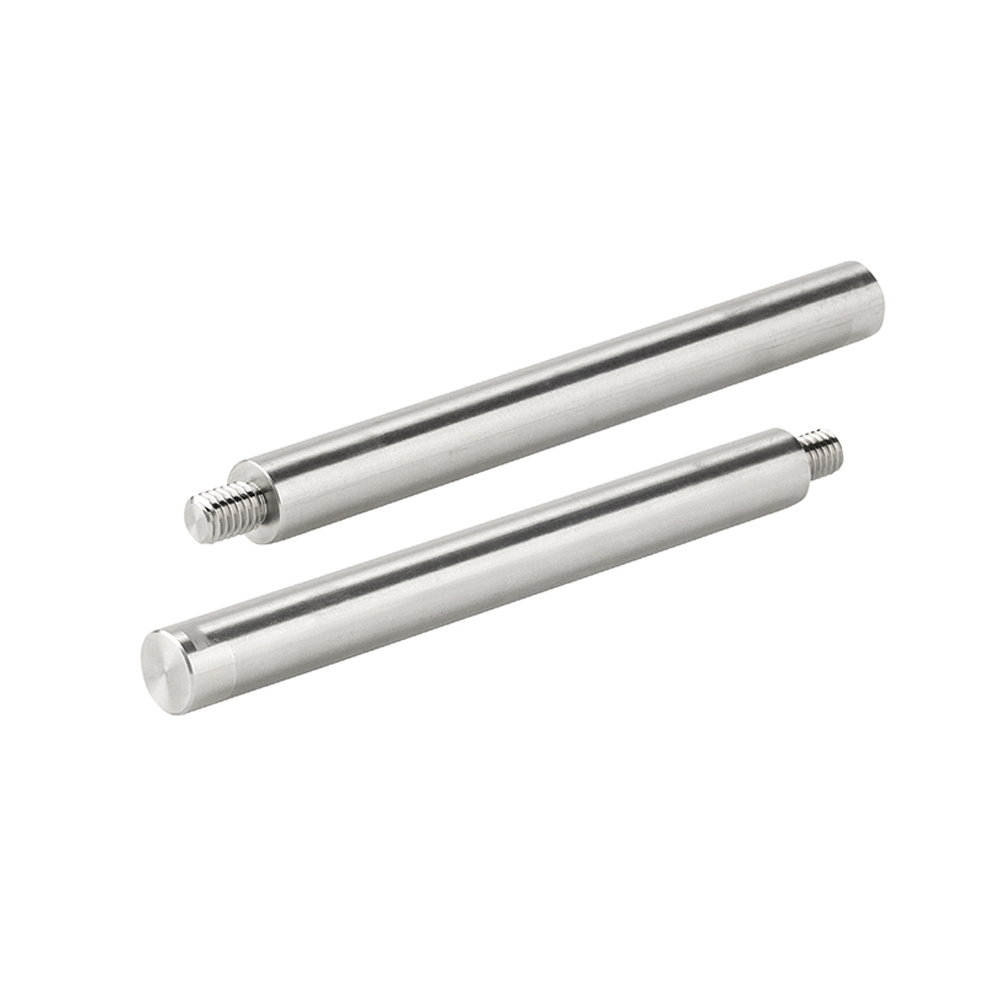

Behringer® Threaded Support Rod for Tube Hangers (ROD)
- Behringer® Threaded Support Rod
- Available in 304 or 316 Stainless Steel
- Rod Diameters Come Standard in 1/2″ or 5/8″
- Rod Threading Available in 3/8″, 1/2″, or 3/4″
- Threaded Rod Only, Mount Hanger Not Included
Behringer® Weldable Threaded Support Rod for Tube Hangers (ROD)
Behringer® Hygienic Tube Supports are designed to meet the high demands of process piping in hygienic service applications and are available in a wide range of sizes and configurations. Securely suspend your sanitary tubing with these threaded rods for tube hangers.
This threaded support rod is available in 304 or 316 stainless steel with length options from 6"-24" and either 1/2" or 5/8" diameter. Threading available in 3/8"-16, 1/2"-13, and 3/4"-10. Suggested for use on Behringer® Threaded Hygienic Tube Supports.

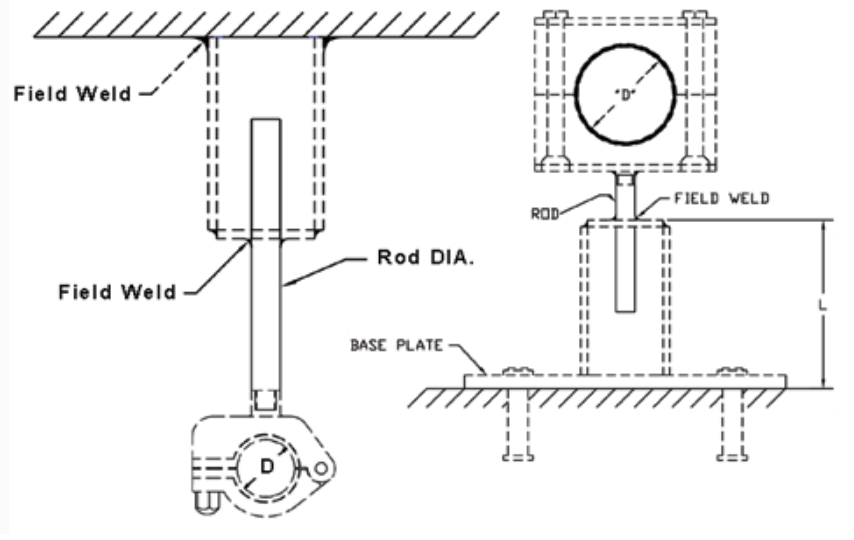

Behringer® Weldable Threaded Support Rod Dimensions
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| ROD-038-T-B-25-06 | Behringer® 6″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 304 | |
| ROD-038-T-B-25-12 | Behringer® 12″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 304 | |
| ROD-038-T-B-25-18 | Behringer® 18″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 304 | |
| ROD-038-T-B-25-24 | Behringer® 24″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 304 | |
| ROD-038-T-C-25-06 | Behringer® 6″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 304 | |
| ROD-038-T-C-25-12 | Behringer® 12″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 304 | |
| ROD-038-T-C-25-18 | Behringer® 18″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 304 | |
| ROD-038-T-C-25-24 | Behringer® 24″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 304 | |
| ROD-050-T-B-25-06 | Behringer® 6″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 304 | |
| ROD-050-T-B-25-12 | Behringer® 12″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 304 | |
| ROD-050-T-B-25-18 | Behringer® 18″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 304 | |
| ROD-050-T-B-25-24 | Behringer® 24″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 304 | |
| ROD-050-T-C-25-06 | Behringer® 6″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 304 | |
| ROD-050-T-C-25-12 | Behringer® 12″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 304 | |
| ROD-050-T-C-25-18 | Behringer® 18″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 304 | |
| ROD-050-T-C-25-24 | Behringer® 24″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 304 | |
| ROD-075-T-B-25-06 | Behringer® 6″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 304 | |
| ROD-075-T-B-25-12 | Behringer® 12″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 304 | |
| ROD-075-T-B-25-18 | Behringer® 18″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 304 | |
| ROD-075-T-B-25-24 | Behringer® 24″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 304 | |
| ROD-075-T-C-25-06 | Behringer® 6″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 304 | |
| ROD-075-T-C-25-12 | Behringer® 12″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 304 | |
| ROD-075-T-C-25-18 | Behringer® 18″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 304 | |
| ROD-075-T-C-25-24 | Behringer® 24″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 304 | |
| ROD-038-X-B-25-06 | Behringer® 6″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 316 | |
| ROD-038-X-B-25-12 | Behringer® 12″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 316 | |
| ROD-038-X-B-25-18 | Behringer® 18″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 316 | |
| ROD-038-X-B-25-24 | Behringer® 24″ Threaded Support Rod, 3/8″-16 Thread, 1/2″ Diameter, 316 | |
| ROD-038-X-C-25-06 | Behringer® 6″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 316 | |
| ROD-038-X-C-25-12 | Behringer® 12″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 316 | |
| ROD-038-X-C-25-18 | Behringer® 18″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 316 | |
| ROD-038-X-C-25-24 | Behringer® 24″ Threaded Support Rod, 3/8″-16 Thread, 5/8″ Diameter, 316 | |
| ROD-050-X-B-25-06 | Behringer® 6″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 316 | |
| ROD-050-X-B-25-12 | Behringer® 12″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 316 | |
| ROD-050-X-B-25-18 | Behringer® 18″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 316 | |
| ROD-050-X-B-25-24 | Behringer® 24″ Threaded Support Rod, 1/2″-13 Thread, 1/2″ Diameter, 316 | |
| ROD-050-X-C-25-06 | Behringer® 6″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 316 | |
| ROD-050-X-C-25-12 | Behringer® 12″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 316 | |
| ROD-050-X-C-25-18 | Behringer® 18″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 316 | |
| ROD-050-X-C-25-24 | Behringer® 24″ Threaded Support Rod, 1/2″-13 Thread, 5/8″ Diameter, 316 | |
| ROD-075-X-B-25-06 | Behringer® 6″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 316 | |
| ROD-075-X-B-25-12 | Behringer® 12″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 316 | |
| ROD-075-X-B-25-18 | Behringer® 18″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 316 | |
| ROD-075-X-B-25-24 | Behringer® 24″ Threaded Support Rod, 3/4″-10 Thread, 1/2″ Diameter, 316 | |
| ROD-075-X-C-25-06 | Behringer® 6″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 316 | |
| ROD-075-X-C-25-12 | Behringer® 12″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 316 | |
| ROD-075-X-C-25-18 | Behringer® 18″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 316 | |
| ROD-075-X-C-25-24 | Behringer® 24″ Threaded Support Rod, 3/4″-10 Thread, 5/8″ Diameter, 316 |
