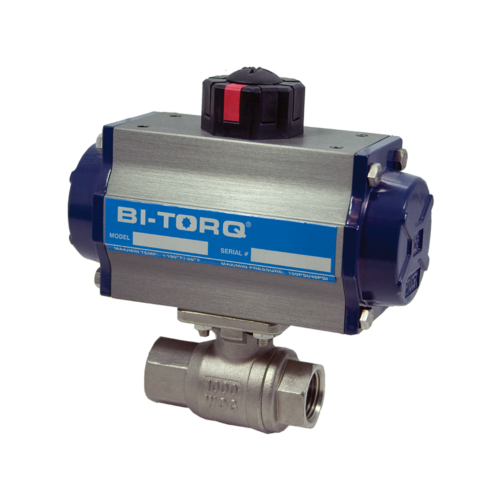

BI-TORQ® Pneumatic Actuated 2-Piece Threaded Ball Valve
- BI-TORQ® Full Port Stainless Steel Ball Valve – NPT Threaded
- Spring-Loaded Belleville Washer, RTFE Seat and PTFE Seal
- Pressure Rated for 1000 PSI WOG
- Aluminum Actuator with 1/8″ or 1/4″ NPT Air Connection
- Direct Mount ISO 5211 Mounting Pad, NAMUR Accessory Mounting
BI-TORQ® Automated 2-Piece Threaded Ball Valve with Pneumatic Actuator
BI-TORQ® ball valves are a type of valve used to regulate the flow of a gas, air, and fluid using a hollow sphere, making them ideal for shut-off applications as they operate quickly. A hole at the center of the ball, called the bore, allows the flow through the valve. The valve mechanism requires a quarter-turn to go from the fully open to the fully closed position. BI-TORQ® ball valves are available in 2-piece or 3-piece styles with RTFE seats and PTFE seals, 316 stainless steel stem and ball. Temperature rating: -4°F-400°F. Pressure rating: 1000 PSI CWP.
If you are looking for additional options, like a different connection size or material, please reach out to our sales team.
View valve or actuator line drawings and dimensions
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| IS-2P-02-32-DA-PN | BI-TORQ® 1/4″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-02-32-DA-PN |
|
| IS-2P-02-52-SR-PN | BI-TORQ® 1/4″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-02-52-SR-PN |
|
| IS-2P-03-32-DA-PN | BI-TORQ® 3/8″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-03-32-DA-PN |
|
| IS-2P-03-52-SR-PN | BI-TORQ® 3/8″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-03-52-SR-PN |
|
| IS-2P-05-32-DA-PN | BI-TORQ® 1/2″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-05-32-DA-PN |
|
| IS-2P-05-52-SR-PN | BI-TORQ® 1/2″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-05-52-SR-PN |
|
| IS-2P-07-32-DA-PN | BI-TORQ® 3/4″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-07-32-DA-PN |
|
| IS-2P-07-52-SR-PN | BI-TORQ® 3/4″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-07-52-SR-PN |
|
| IS-2P-10-52-DA-PN | BI-TORQ® 1″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-10-52-DA-PN |
|
| IS-2P-10-63-SR-PN | BI-TORQ® 1″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-10-63-SR-PN |
|
| IS-2P-12-63-DA-PN | BI-TORQ® 1 1/4″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-12-63-DA-PN |
|
| IS-2P-12-63-SR-PN | BI-TORQ® 1 1/4″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-12-63-SR-PN |
|
| IS-2P-15-63-DA-PN | BI-TORQ® 1 1/2″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-15-63-DA-PN |
|
| IS-2P-15-75-SR-PN | BI-TORQ® 1 1/2″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-15-75-SR-PN |
|
| IS-2P-20-100-SR-PN | BI-TORQ® 2″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-20-100-SR-PN |
|
| IS-2P-20-63-DA-PN | BI-TORQ® 2″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-20-63-DA-PN |
|
| IS-2P-25-115-SR-PN | BI-TORQ® 2 1/2″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-25-115-SR-PN |
|
| IS-2P-25-85-DA-PN | BI-TORQ® 2 1/2″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-25-85-DA-PN |
|
| IS-2P-30-100-DA-PN | BI-TORQ® 3″ 2-Piece NPT Threaded Ball Valve with Double Acting Pneumatic Actuator, IS-2P-30-100-DA-PN |
|
| IS-2P-30-125-SR-PN | BI-TORQ® 3″ 2-Piece NPT Threaded Ball Valve with Spring Return Pneumatic Actuator, IS-2P-30-125-SR-PN |
