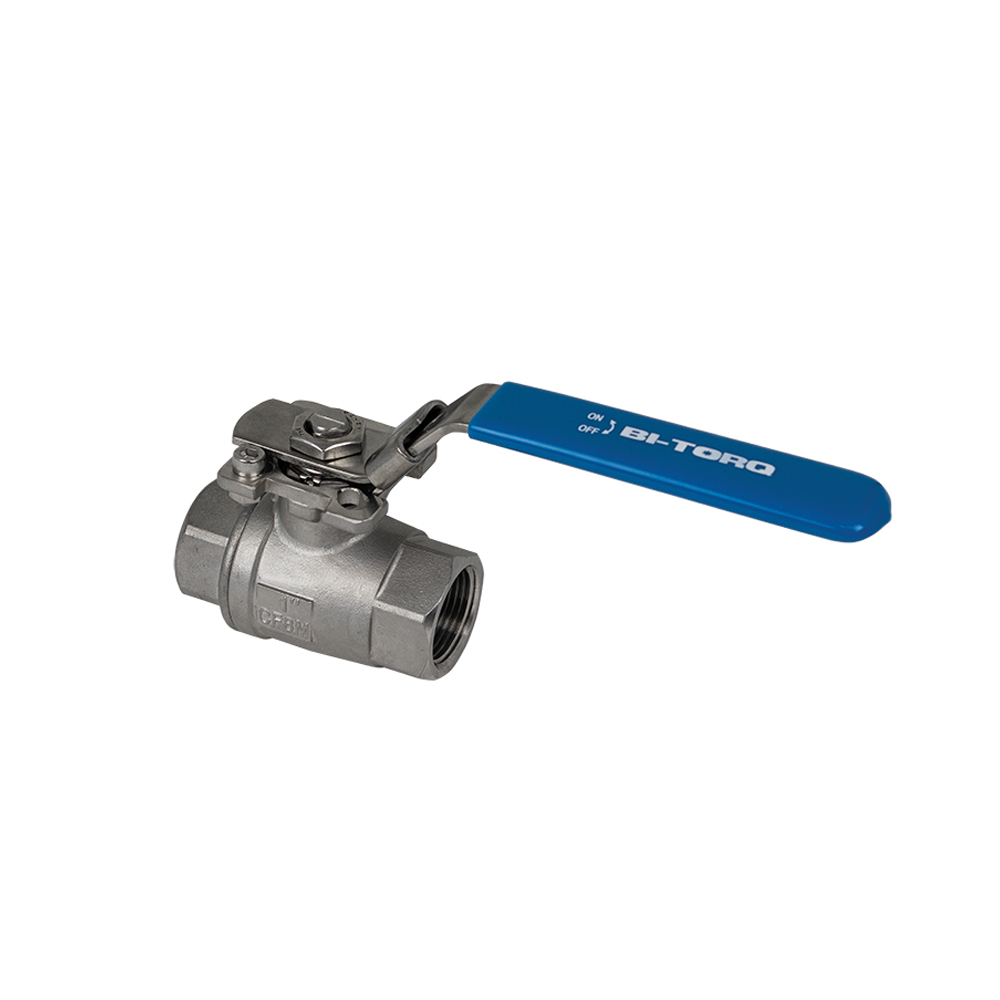

BI-TORQ® Manual 2-Piece Threaded Ball Valve with Locking Handle
- BI-TORQ® Full Port Stainless Steel Ball Valve – NPT Threaded
- Spring-Loaded Belleville Washer, RTFE Seat, and PTFE Seal
- Pressure Rated for 1000 PSI WOG
- Direct Mount ISO 5211 Mounting Pad
- Includes OSHA-Approved Lockable Lever Handle
BI-TORQ® Manual 2-Piece NPT Threaded Ball Valve with Locking Handle
BI-TORQ® ball valves are used to regulate the flow of a gas, air, and fluid using a hollow sphere, making them ideal for shut-off applications as they operate quickly. A hole at the center of the ball, called the bore, allows the flow through the valve. The valve mechanism requires a quarter-turn to go from the fully open to the fully closed position. BI-TORQ® ball valves are available in 2-piece or 3-piece styles with RTFE seats and PTFE seals, 316 stainless steel stem and ball. Temperature rating: -4°F-400°F with a steam maximum of 366°F. Pressure rating: 1000 PSI CWP.
If you are looking for additional options, like a different connection size or material, please reach out to our sales team.
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| MS-2PT-002 | BI-TORQ® 1/4″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-002 |
|
| MS-2PT-003 | BI-TORQ® 3/8″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-003 |
|
| MS-2PT-005 | BI-TORQ® 1/2″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-005 |
|
| MS-2PT-007 | BI-TORQ® 3/4″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-007 |
|
| MS-2PT-010 | BI-TORQ® 1″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-010 |
|
| MS-2PT-012 | BI-TORQ® 1 1/4″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-012 |
|
| MS-2PT-015 | BI-TORQ® 1 1/2″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-015 |
|
| MS-2PT-020 | BI-TORQ® 2″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-020 |
|
| MS-2PT-030 | BI-TORQ® 3″ Manually Operated 2-Piece NPT Threaded Ball Valve, MS-2PT-030 |
