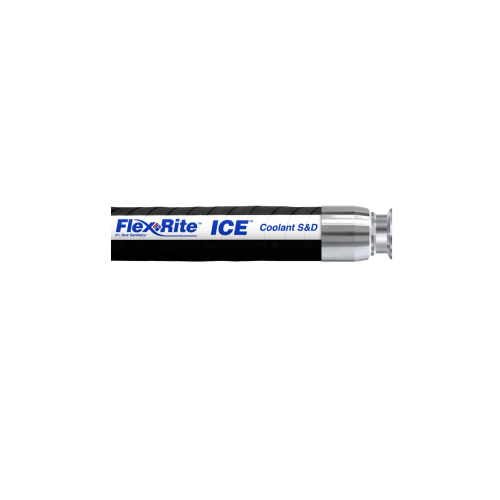

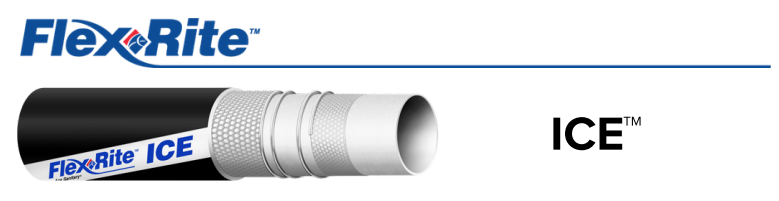

Peroxide-Cured EPDM Coolant Hose (ICE)
- Peroxide-Cured EPDM Coolant Hose
- Hygienic fitting integration for full drain-ability and high flow
- Outstanding durability, flexibility and long-term performance
- Effective across a wide temperature range from -40° to 248°F (-40° to 120°C)
- Specs include varying working pressures, 27″ vacuum
- UL 94 HB compliant hose with UL 94 V-0 cover
CUSTOM PRODUCT CANNOT BE RETURNED
Designed to meet the critical requirements for long term performance in data center cooling applications. The peroxide cured EPDM tube ensures cooling fluid integrity and retains its mechanical properties through a wide temperature range to provide a reliable solution to support the demanding requirements of modern designs for data center cooling equipment. Available in a broad size range to accommodate most applications.
- TUBE: White, Peroxide Cured EPDM COVER UL Certified Black EPDM Synthetic Rubber
- REINFORCEMENT: Two polyester spirals with dual wire helix
- TEMP. RANGE: -40 to 248° F
- Note: EPDM not recommended for use with petroleum based fluids. Finished product not UL Tested.
Industry and Application
-
- Data Cooling Centers
ICE Peroxide-Cured EPDM Coolant Hose Part Numbers & Dimensions
| Model | Hose I.D. | Hose O.D. | Min. Bend Radius | Weight (lbs/ft.) | Working Pressure | VAC in HG | Max Length |
|---|---|---|---|---|---|---|---|
| ICE050 | 0.50" | 0.94" | 2.0" | .28 lbs. | 150 psi | 27" | 130' |
| ICE075 | 0.75" | 1.22" | 2.5" | .47 lbs. | 150 psi | 27" | 130' |
| ICE100 | 1.00" | 1.46" | 3.5" | .57 lbs. | 150 psi | 27" | 130' |
| ICE150 | 1.50" | 2.00" | 6.0" | .88 lbs. | 150 psi | 27" | 130' |
| ICE200 | 2.00" | 2.52" | 7.5" | 1.13 lbs. | 150 psi | 27" | 130' |
| ICE250 | 2.50" | 3.17" | 10.5" | 1.87 lbs. | 150 psi | 27" | 130' |
| ICE300 | 3.00" | 3.70" | 13.0" | 2.24 lbs. | 150 psi | 27" | 130' |
| ICE400 | 4.00" | 4.80" | 17.0" | 3.32 lbs. | 150 psi | 27" | 130' |
| ICE600 | 6.00" | 7.05" | 29.5" | 7.27 lbs. | 150 psi | 27" | 40' |
