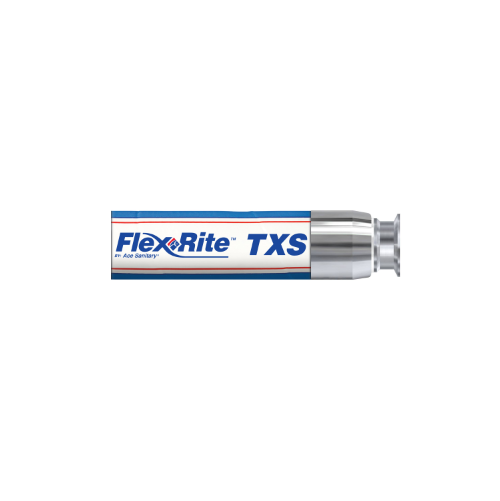

Smooth Bore PTFE Hose (TXS-C)
- TXS-C Smooth Bore PTFE Hose Assembly
- TUBE: PTFE (Natural or Antistatic), 3-A*, USP Class VI & FDA Criteria
- COVER: EPDM Cover
- REINFORCEMENT: Stainless Steel Helix
- TEMP. RANGE: -40 to 302° F , -40 to 150° C Vulcanized
- RECOMMENDED CLEANING: CIP, SIP, Autoclave
CUSTOM PRODUCT CANNOT BE RETURNED
An excellent choice for edible oils, and personal care products as well as most dairy applications.
TXS is a non-convoluted, ultra hygienic flexible PTFE liner with external embedded stainless steel vacuum spiral and stainless steel overbraid as standard. Choose when dynamic endurance, product viscosity, contamination hazard, turbulence, flow rate and hygienic cleanability are areas of particular concern.
- An excellent choice for edible oils, and personal care products as well as most dairy applications.
- Rated for full transfer use up to 150 PSI, Nitrile hose is engineered to handle high temperatures and maintain product color, taste, and aroma.
Industry and Application
- Volatile Media Transfer
- Food & Beverage
- Biotech Industry
- Pharmaceutical/ Biopharm
- Hot Oil Transfer
- Low Velocity Transfer
Available Hose Connections Styles
- 90-Degree Tri-Clamp Elbow
- Bevel Seat - Plain w/ Nut
- Bevel Seat Nut
- Camlock Female
- Compression Tube
- Electropolished Tri-Clamp
- Flange End
- I-Line Male
- I-Line Female
- Male NPT Thread
- Tri-Clamp
TXS-C Hose Part Numbers & Dimensions
| MODEL | I.D. | O.D. | WORKING PRESSURE | MIN. BEND RADIUS | WEIGHT PER FT. |
|---|---|---|---|---|---|
| TXS-C050 | 0.50" | 1.01" | 580 PSI | 2.4" | 0.27 lbs. |
| TXS-C075 | 0.75" | 1.29" | 580 PSI | 3.2" | 0.60 lbs. |
| TXS-C100 | 1.0" | 1.51" | 580 PSI | 4.7" | 0.67 lbs. |
| TXS-C150 | 1.5" | 2.10" | 365 PSI | 7.9" | 1.18 lbs. |
| TXS-C200 | 2.0" | 2.61" | 365 PSI | 9.8" | 1.78 lbs. |
