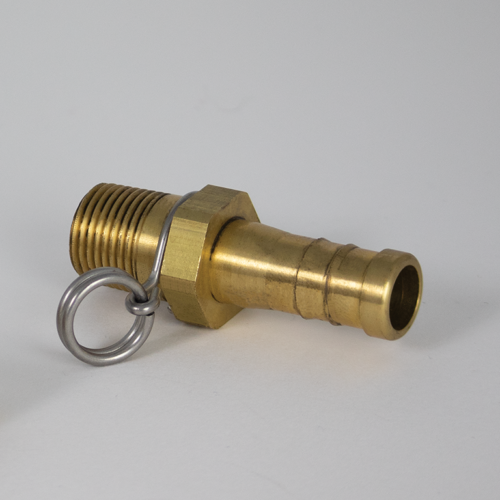

Strahman Rigid Barb Adapter
- Strahman Washdown Systems Hose Rigid Adapter
- Maximum working pressure 150psi (10 BAR)
- Maximum recommended operating temperature (200º Fahrenheit / 93º Celsius)
- For M-70, S-70, S-80, and F-90 Series
Washdown Station M-70 & S-70 Spray Nozzle Series Rigid Adapter
The M-70 and S-70 series combines modern and innovative engineering with premium quality parts to build an industrial nozzle strong enough to withstand even the most rugged applications. This rubber-coated, precision-made nozzle enables the operator to achieve any type of water stream – from a soft spray to a strong, straight stream – simply by pressing the lever. This convenient control of the wash assures better cleaning with a lot less effort and hand fatigue.
Available in both stainless steel (S-70) and bronze (M-70) construction, a replaceable heavy-duty rubber cover, stainless steel seat design to prevent leakage, and instant water shut-off when the trigger is released.
- Available in materials: Bronze
- Available various sizes: 1/2", 5/8", 3/4"
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| BARB0050BR | Rigid Adapter, 1/2” ID Barb Hose, Bronze, For M-70, S-70, S-80, and F-90 |
|
| BARB0063BR | Rigid Adapter, 5/8” ID Barb Hose, Bronze, For M-70, S-70, S-80, and F-90 |
|
| BARB0075BR | Rigid Adapter, 3/4” ID Barb Hose, Bronze, For M-70, S-70, S-80, and F-90 |
|
| WSADAPTERCOMPLETE0003 | Rigid Adapter, 3/4” Female GHT, Bronze, For M-70, S-70, S-80, & F-90 Series |
