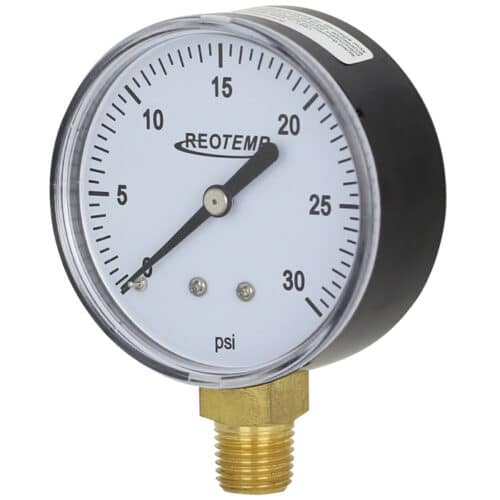

Reotemp® General Purpose Brass Gauge with 2.5" Dial (PD25N)
Reotemp® General Purpose Brass Gauge with 2.5" Dial (PD25N) - Image 2
Reotemp® General Purpose Brass Gauge with 2.5" Dial (PD25N) - Image 3

Reotemp® General Purpose Brass Gauge with 2.5″ Dial (PD25N)

  • Gauge Series: General Purpose Brass 2.5″ Gauge, Series PD25N
  • Process Connection: 1/8″ NPT or 1/4″ NPT
  • Mount Options: Back Connection (Center Back) or Bottom Connection
  • Gauge Range Units: 0 – 4000 psi
  • Lens Type: Plastic (Acrylic)
Quantity - +

Reotemp® General Purpose Brass Gauge with 2.5" Dial, Series PD25N

The Reotemp® Series PD25N2 brass gauges offer a wide variety of economical gauges for applications where ambient or process corrosion are not of concern. Series PD15/20/25 are suitable for non-vibrating applications. Non wetted parts: Case is black painted steel and ring is snap-in plastic. Wetted parts: capsule and socket are copper alloy. Accuracy: 3 – 2 – 3%, ASME Grade B.

If you cannot find the right gauge for you, please reach out to our sales team to inquire about custom options.

Additional information

Line Drawings

SKUDescriptionLine Drawing
PD25N2A4P16-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 30 psi
range with Acrylic Lens

 PDF
PD25N2A4P18-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 100 psi
range with Acrylic Lens

 PDF
PD25N2A4P20-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 200 psi
range with Acrylic Lens

 PDF
PD25N2A4P22-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 400 psi
range with Acrylic Lens

 PDF
PD25N2A4P23-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 600 psi
range with Acrylic Lens

 PDF
PD25N2A4P25-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 1000 psi
range with Acrylic Lens

 PDF
PD25N2A4P33-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Bottom Connected, 0 psi – 4000 psi
range with Acrylic Lens

 PDF
PD25N2A8P16-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 30 psi
range with Acrylic Lens

 PDF
PD25N2A8P18-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 100 psi
range with Acrylic Lens

 PDF
PD25N2A8P20-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 200 psi
range with Acrylic Lens

 PDF
PD25N2A8P22-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 400 psi
range with Acrylic Lens

 PDF
PD25N2A8P24-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 800 psi
range with Acrylic Lens

 PDF
PD25N2A8P25-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 1000 psi
range with Acrylic Lens

 PDF
PD25N2A8P31-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 2000 psi
range with Acrylic Lens

 PDF
PD25N2A8P33-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Bottom Connected, 0 psi – 4000 psi
range with Acrylic Lens

 PDF
PD25N2C4P16-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 30 psi
range with Acrylic Lens

 PDF
PD25N2C4P18-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 100 psi
range with Acrylic Lens

 PDF
PD25N2C4P20-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 200 psi
range with Acrylic Lens

 PDF
PD25N2C4P22-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 400 psi
range with Acrylic Lens

 PDF
PD25N2C4P23-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 600 psi
range with Acrylic Lens

 PDF
PD25N2C4P25-D-P

Reotemp® General Purpose Brass Gauge, 1/4″ NPT Center Back Connected, 0 psi – 1000 psi
range with Acrylic Lens

 PDF
PD25N2C8P16-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 30 psi
range with Acrylic Lens

 PDF
PD25N2C8P18-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 100 psi
range with Acrylic Lens

 PDF
PD25N2C8P20-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 200 psi
range with Acrylic Lens

 PDF
PD25N2C8P22-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 400 psi
range with Acrylic Lens

 PDF
PD25N2C8P23-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 600 psi
range with Acrylic Lens

 PDF
PD25N2C8P24-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 800 psi
range with Acrylic Lens

 PDF
PD25N2C8P25-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 1000 psi
range with Acrylic Lens

 PDF
PD25N2C8P31-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 2000 psi
range with Acrylic Lens

 PDF
PD25N2C8P33-D-P

Reotemp® General Purpose Brass Gauge, 1/8″ NPT Center Back Connected, 0 psi – 4000 psi
range with Acrylic Lens

 PDF
