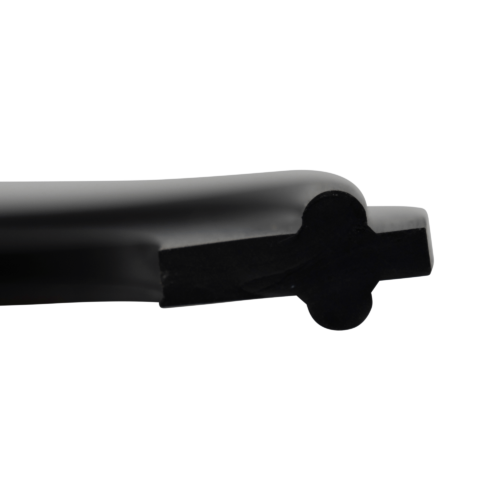

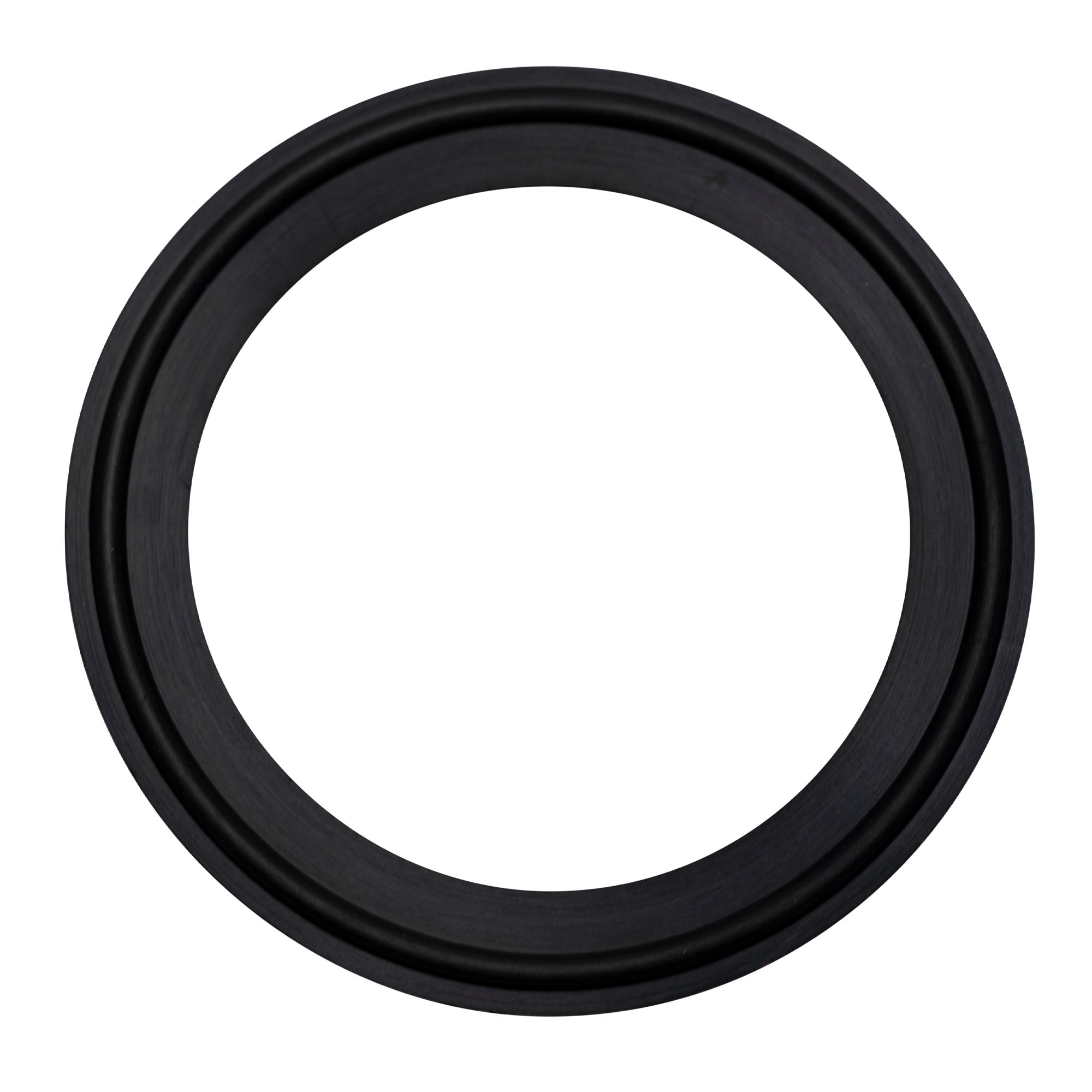

Schedule 5 Unflanged Clamp Gaskets (40MV)

  • Schedule 5 Unflanged Clamp Gaskets
  • We also offer Flanged Schedule 5 Clamp Gaskets
  • We offer Schedule V clamp gaskets in the following materials: Buna, EPDM, FKM/Viton, PTFE (Teflon), and Silicone
Quantity - +

Schedule 5 unflanged clamp gaskets, with Schedule 5 fittings, provide a great alternative to standard systems.

The quick connect will eliminate pipe threads and bolt flanges and can save time while offering better sanitary connections. Used in the food, beverage, dairy, pharmaceutical sanitary process industries. We offer Schedule V clamp gaskets in the following materials: Buna, EPDM, FKM/Viton, PTFE (Teflon) and Silicone.

How to Measure Tri-Clamp Fittings

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions

Sanitary
Size
Flange
OD (?)
Tube
ID (?)
Tube
OD (?)
1/2″ 0.984 0.370 0.500
3/4″ 0.984 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000
10″ 10.570 9.782 10.000
12″ 12.570 11.760 12.000

Looking for even more information on Tri-Clamp fittings?

We have everything you need. Read "The Ultimate Guide to Tri-Clamp Fittings"
