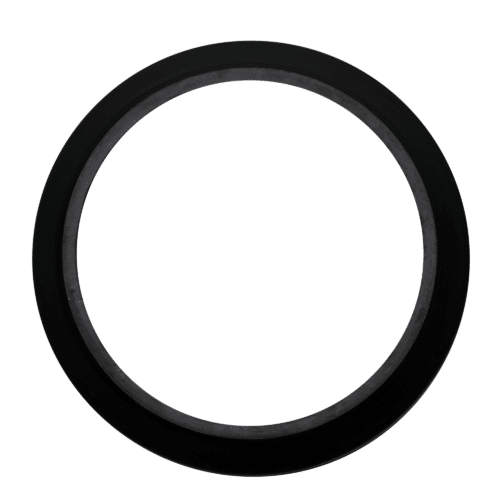

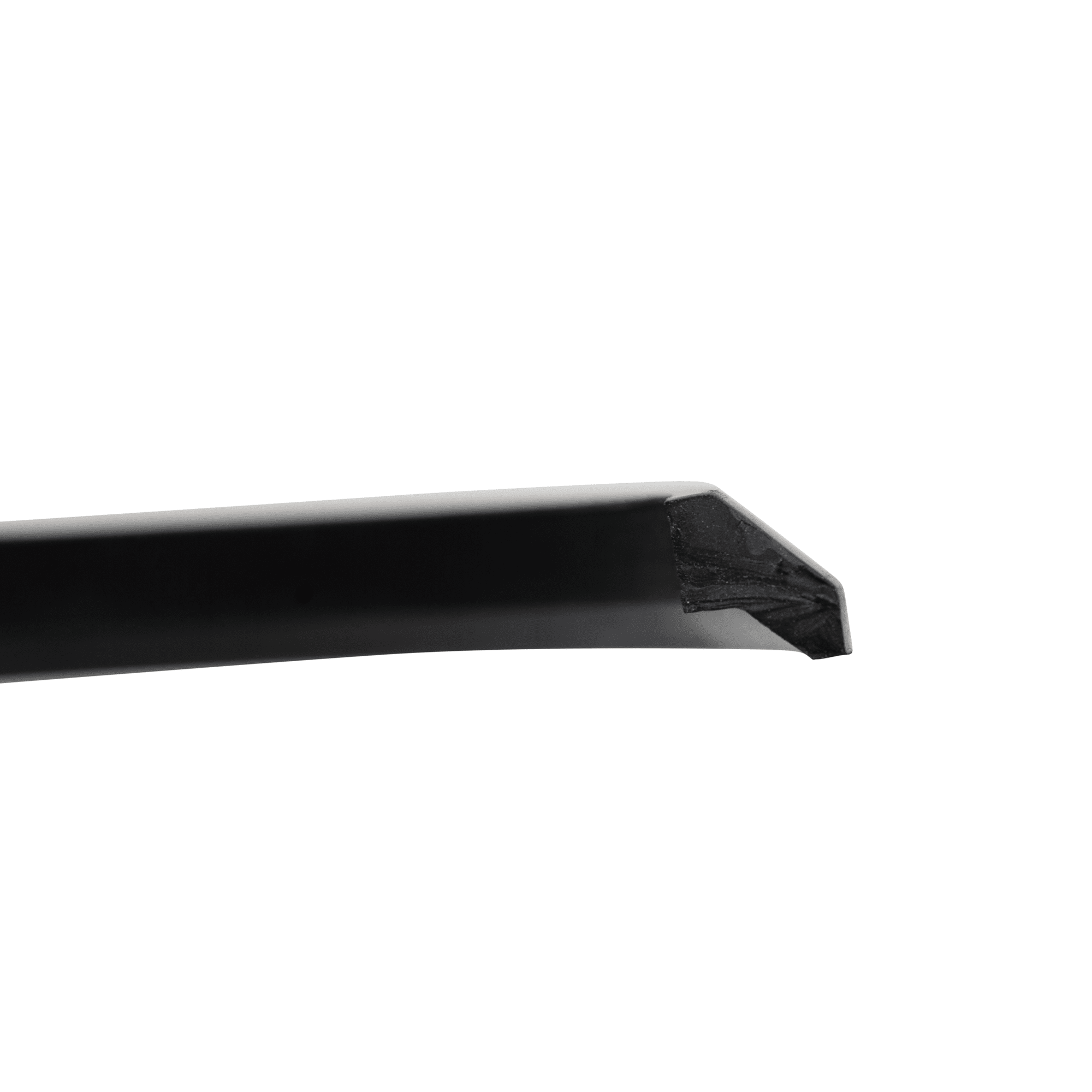

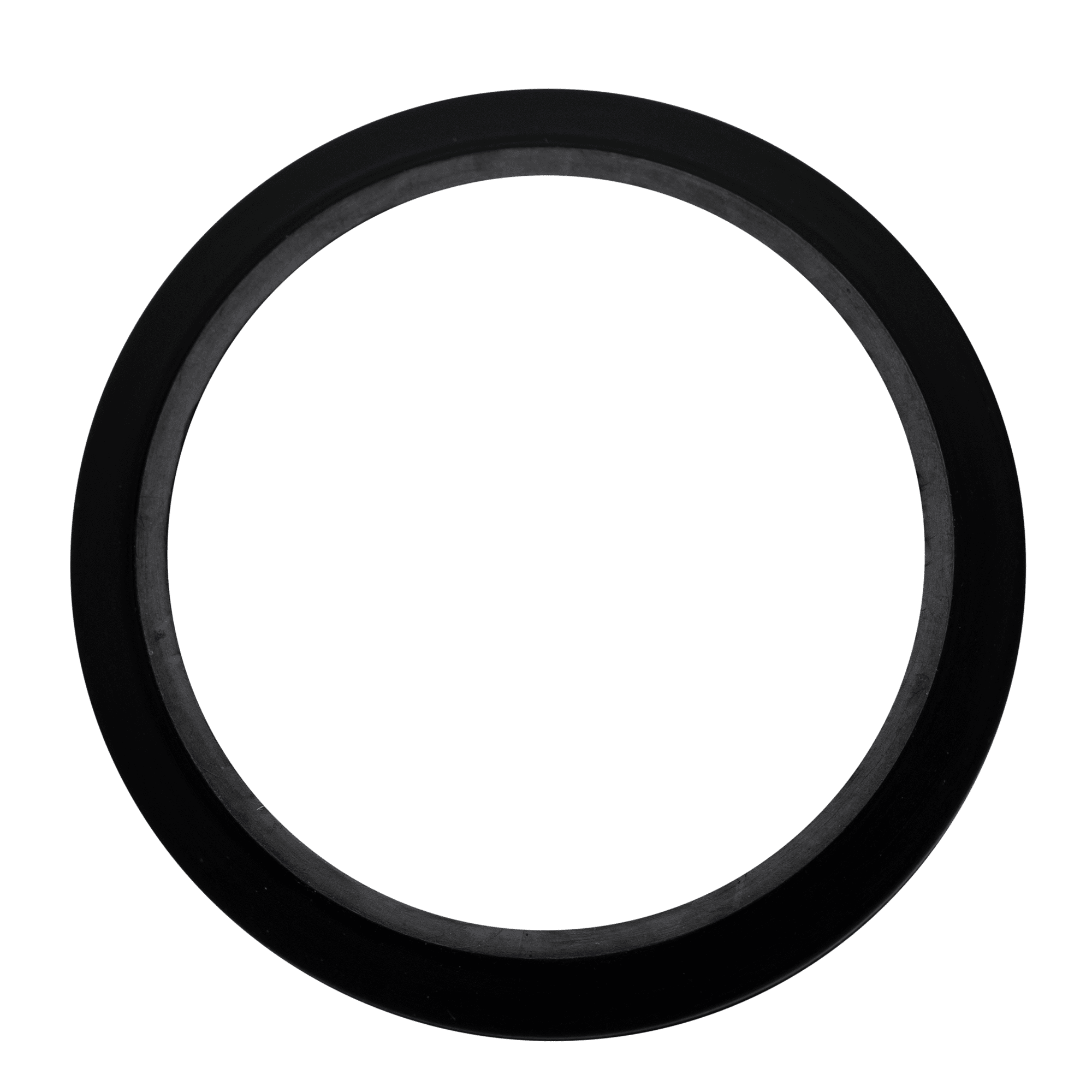

Bevel Seat Gaskets (40BS)
- Available in both Buna and Teflon®
- PTFE (Teflon®) is a material subject to plastic flow. When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to their original configuration. They will continue to compress as the cycling continues. This plastic flow will allow leakage if clamp torques are not maintained.
- Refer to Compound Selection Guided for compatibility information.
Bevel Seat Gasket Part Numbers & Description
| Size (Tube OD) | Part Number | Gasket ID | Gasket OD | |
| Teflon | Buna | |||
| 1 " | 300-TM | 40BSO-1 | 0.900" | 1.325" |
| 1-1/2" | 301-TM | 40BSO-1.5 | 1.375" | 1.875" |
| 2 " | 302-TM | 40BSO-2 | 1.850" | 2.375" |
| 2-1/2" | 303-TM | 40BSO-2.5 | 2.340" | 2.950" |
| 3" | 304-TM | 40BSO-3 | 2.875" | 3.475" |
| 4" | 305-TM | 40BSO-4 | 3.700" | 4.500" |
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| 300-TM | 1″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 301-TM | 1 1/2″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 302-TM | 2″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 303-TM | 2 1/2″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 303-TM-BT | 2 1/2″ Blue PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 304-TM | 3″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 305-TM | 4″ White PTFE (Teflon) Bevel Seat Gasket |
Request Line Drawing |
| 40BSE-1.5 | 1 1/2″ Black EPDM Bevel Seat Gasket |
Request Line Drawing |
| 40BSE-2 | 2″ Black EPDM Bevel Seat Gasket |
Request Line Drawing |
| 40BSE-2.5 | 2 1/2″ Black EPDM Bevel Seat Gasket |
|
| 40BSE-3 | 3″ Black EPDM Bevel Seat Gasket |
Request Line Drawing |
| 40BSE-4 | 4″ Black EPDM Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-1 | 1″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-1.5 | 1 1/2″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-2 | 2″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-2.5 | 2 1/2″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-3 | 3″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-4 | 4″ Black Buna Bevel Seat Gasket |
Request Line Drawing |
| 40BSO-MDXR-2B | 2″ Blue Buna Metal Detectable Bevel Seat Gasket |
Request Line Drawing |
| 40BSY-1.5 | 1 1/2″ Black FKM/SFY Viton Bevel Seat Gasket |
Request Line Drawing |
| 40BSY-2 | 2″ Black FKM/SFY Viton Bevel Seat Gasket |
Request Line Drawing |
| 40BSY-2.5 | 2 1/2″ Black FKM/SFY Viton Bevel Seat Gasket |
|
| 40BSY-3 | 3″ Black FKM/SFY Viton Bevel Seat Gasket |
Request Line Drawing |
| 40BSY-4 | 4″ Black FKM/SFY Viton Bevel Seat Gasket |
Request Line Drawing |
