Tee-Line Strainer
- Includes: Tee, Strainer Insert & Clamp
- 316L Stainless Steel
- Tube OD Sizes 1 1/2″ – 4″
- Perforated Sizes 1/8″, 1/4″
Tee-Line Strainer allows for easy access to in-line strainer assembly.
Designed to keep foreign materials such as gasket pieces, bolts, and other items out of your pumps, valves and process equipment. They are installed before the suction end of your pump, as an economical and easy way to protect your valuable equipment.
Engineered with simplicity and durability in mind and the tri-clamp fitting allows quick and easy insert removal.
| Size Tube OD | Part Number | Perf. Size | A | B | C | D | Insert Thickness |
|---|---|---|---|---|---|---|---|
| 1 1/2" | KET01500 | 1/4" | 2.750" | 5.500" | 2.750" | 4.343" | 0.075" |
| 1 1/2" | KET01518 | 1/8" | 2.750" | 5.500" | 2.750" | 4.343" | 0.075" |
| 2" | KET02000 | 1/4" | 3.500" | 7.000" | 3.500" | 5.093" | 0.075" |
| 2" | KET02018 | 1/8" | 3.500" | 7.000" | 3.500" | 5.093" | 0.075" |
| 2 1/2" | KET02500 | 1/4" | 3.500" | 7.000" | 3.500" | 5.093" | 0.109" |
| 2 1/2" | KET02518 | 1/8" | 3.500" | 7.000" | 3.500" | 5.093" | 0.109" |
| 3" | KET03000 | 1/4" | 3.750" | 7.500" | 3.750" | 5.343" | 0.109" |
| 3" | KET03018 | 1/8" | 3.750" | 7.500" | 3.750" | 5.343" | 0.109" |
| 4" | KET04000 | 1/4" | 4.500" | 9.000" | 4.500" | 6.155" | 0.109" |
| 4" | KET04018 | 1/8" | 4.500" | 9.000" | 4.500" | 6.155" | 0.109" |
How to Measure Tri-Clamp Fittings
Tri-Clamp Fittings and Gasket Sizing Guide
| Sanitary Size |
Flange OD (?) |
Tube ID (?) |
Tube OD (?) |
|---|---|---|---|
| 1/2″ | 0.984 | 0.370 | 0.500 |
| 3/4″ | 0.984 | 0.620 | 0.750 |
| 1″ | 1.984 | 0.870 | 1.000 |
| 1 1/2″ | 1.984 | 1.370 | 1.500 |
| 2″ | 2.516 | 1.870 | 2.000 |
| 2 1/2″ | 3.047 | 2.370 | 2.500 |
| 3″ | 3.579 | 2.870 | 3.000 |
| 4″ | 4.682 | 3.834 | 4.000 |
| 6″ | 6.562 | 5.782 | 6.000 |
| 8″ | 8.602 | 7.782 | 8.000 |
| 10″ | 10.570 | 9.782 | 10.000 |
| 12″ | 12.570 | 11.760 | 12.000 |
Looking for even more information on Tri-Clamp fittings?
We have everything you need. Read "The Ultimate Guide to Tri-Clamp Fittings"
Additional information

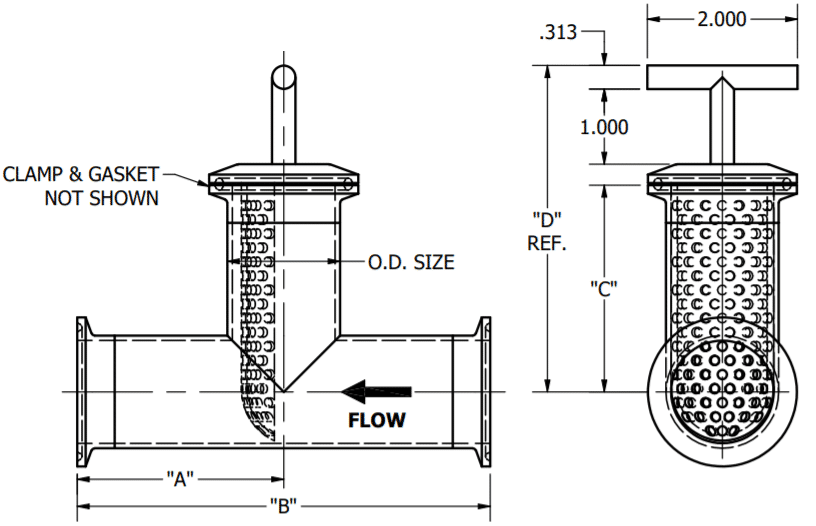

Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| KET01500-316 | 1 1/2″ Fitting Size, 1/8″ Perforated, 5.5″ Face-to-Face Dim. |
|
| KET01518-316 | 1 1/2″ Fitting Size, 1/8″ Perforated, 5.5″ Face-to-Face Dim. |
|
| KET02000-316 | 2″ Fitting Size, 1/4″ Perforated, 7.0″ Face-to-Face Dim. |
|
| KET02018-316 | 2″ Fitting Size, 1/8″ Perforated, 7.0″ Face-to-Face Dim. |
|
| KET02500-316 | 2 1/2″ Fitting Size, 1/4″ Perforated, 7.0″ Face-to-Face Dim. |
|
| KET02518-316 | 2 1/2″ Fitting Size, 1/8″ Perforated, 7.0″ Face-to-Face Dim. |
|
| KET03000-316 | 3″ Fitting Size, 1/4″ Perforated, 7.5″ Face-to-Face Dim. |
|
| KET03018-316 | 3″ Fitting Size, 1/8″ Perforated, 7.5″ Face-to-Face Dim. |
|
| KET04000-316 | 4″ Fitting Size, 1/4″ Perforated, 9.0″ Face-to-Face Dim. |
|
| KET04018-316 | 4″ Fitting Size, 1/8″ Perforated, 9.0″ Face-to-Face Dim. |
-
Is there a pressure drop which occurs through this strainer? If so then what is the pressure differential?
-
Q Is there a pressure drop which occurs through this strainer? If so then what is the pressure diff...... Read moreA I apologize but have not tested this strainer for drops in pressure. I reached out to the manufacturer and they also did not have this information available.
What is the pressure temperature rating
-
Q What is the pressure temperature ratingA
The weakest point with regard to temperature and pressure is the connection point which requires both a gasket and a clamp. The style of clamp chosen will dictate the maximum allowable pressure while the gasket material will dictate the maximum temperature rating. For more information, please see our temperature and pressure ratings guide.
Can this be used in a vertical position?
-
Q Can this be used in a vertical position?A Hello, thanks for reaching out. There isn’t a reason why you cannot mount the tee line strainer in a vertical fashion. There may be product hold up in the branch (dead leg) area depending on flow, volume, and operating conditions. Please let me know if you have any other questions.
Is this strainer 3A? Sani-Matic has specifically said their tee strainers are not 3A
-
Q Is this strainer 3A? Sani-Matic has specifically said their tee strainers are not 3AA The Tee-Line Strainer from Sani-Matic is NOT 3A Certified.
