Sanitary Fittings and Surface Finish: Roughness Average Explained

Hygienic Design, References & Guides

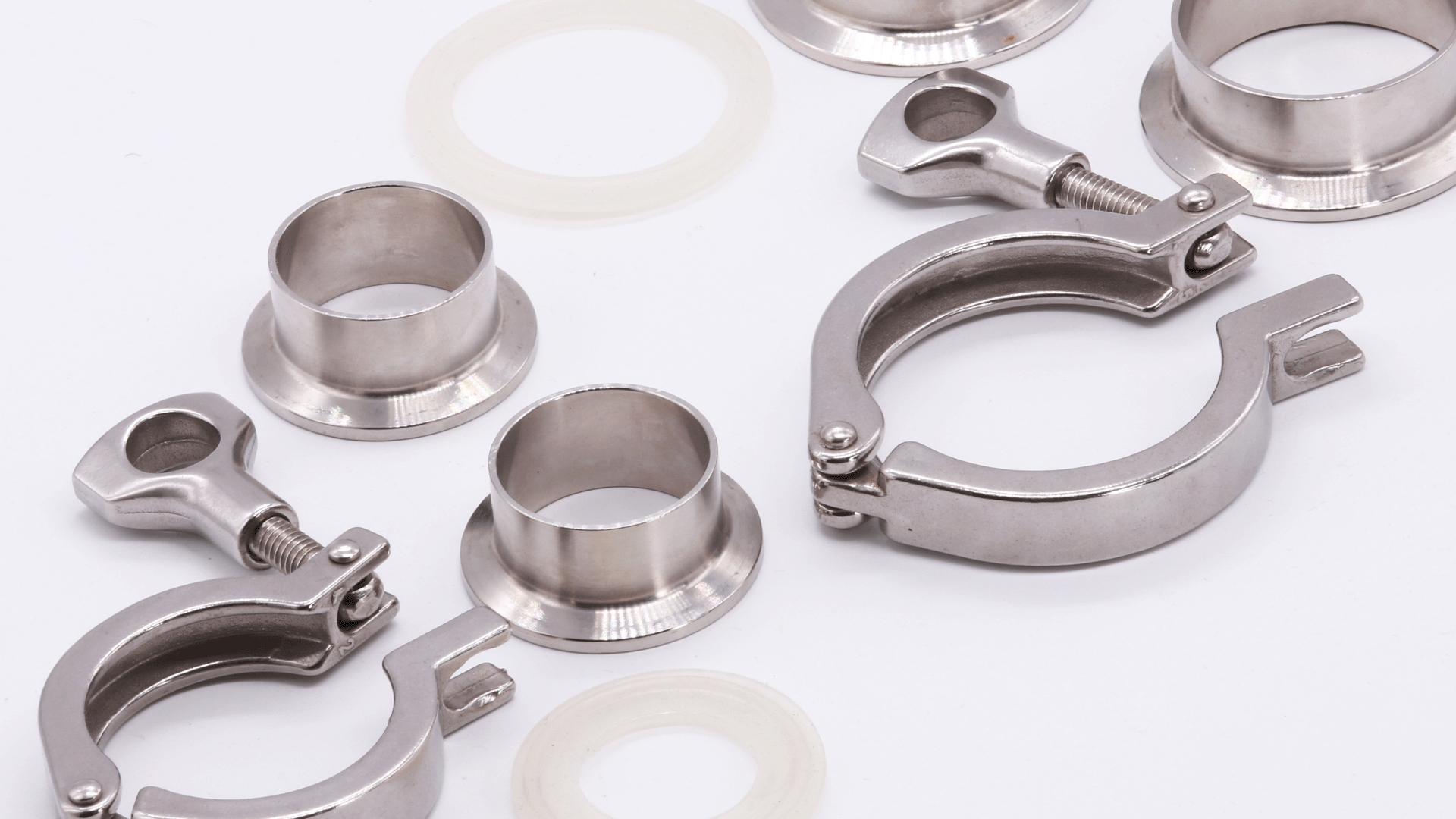

Surface finish is a critical aspect of sanitary tube fittings, particularly in industries like pharmaceuticals, food and beverage, biotechnology, and semiconductors, where hygiene and cleanliness are of utmost importance. Surface finish refers to the quality and smoothness of the surface of a tube or pipe fitting, and it plays a vital role in preventing contamination, facilitating cleaning, and ensuring the overall integrity of the system. In sanitary applications, where the prevention of bacterial growth and ease of cleaning are crucial, utilizing the correct surface finish is essential.

Surface finish is typically measured in terms of roughness average (Ra) or the roughness peak-to-valley (Rz) value. The Ra value represents the average height of peaks and valleys on the surface of the material. Sanitary tube fittings often aim for specific Ra values to meet industry standards and application requirements.

Here are the differences between different surface finishes, particularly the 32 Ra, 20 Ra, and 15 Ra:

1. 32 Ra (Roughness Average 32):
– This is a relatively standard surface finish and is considered suitable for many sanitary applications.
– It provides a reasonably smooth surface that is easy to clean and maintain.
– While it may not be the highest level of finish available, it is cost-effective and suitable for applications where extreme smoothness is not critical.

2. 20 Ra (Roughness Average 20):
– A 20 Ra surface finish is smoother than 32 Ra and is often preferred in applications where a higher level of cleanliness and hygiene is required.
– It offers improved resistance to bacterial adhesion and makes cleaning more effective.
– This finish is commonly used in industries like pharmaceuticals and food processing.

3. 15 Ra (Roughness Average 15):
– 15 Ra is an even smoother surface finish, and it is considered high-quality for sanitary applications.
– It provides excellent resistance to bacterial growth and is suitable for applications where the highest level of cleanliness and hygiene is essential.
– Industries such as biotechnology, semiconductor manufacturing, and ultra-pure water systems often require this level of surface finish to ensure product quality and purity.

In summary, the choice of surface finish in sanitary tube fittings depends on the specific requirements of the application. A 32 Ra finish is cost-effective and suitable for many applications, while a 20 Ra finish offers improved hygiene and is common in pharmaceutical and food processing industries. For the strictest sanitary standards and critical applications, a 15 Ra finish is the preferred choice due to its exceptional smoothness and resistance to bacterial growth. It’s important to consult industry standards and regulations to determine the appropriate surface finish for your specific sanitary tubing needs.
