Understanding Process Pressure Gauges: When and Why to Use Them

Gauges, Product Information

In industrial processes, maintaining control over pressure is paramount. Whether it’s in chemical plants, manufacturing facilities, or oil refineries, understanding and monitoring pressure levels is crucial for ensuring safety, efficiency, and product quality. This is where process pressure gauges come into play.

What is a Process Pressure Gauge?

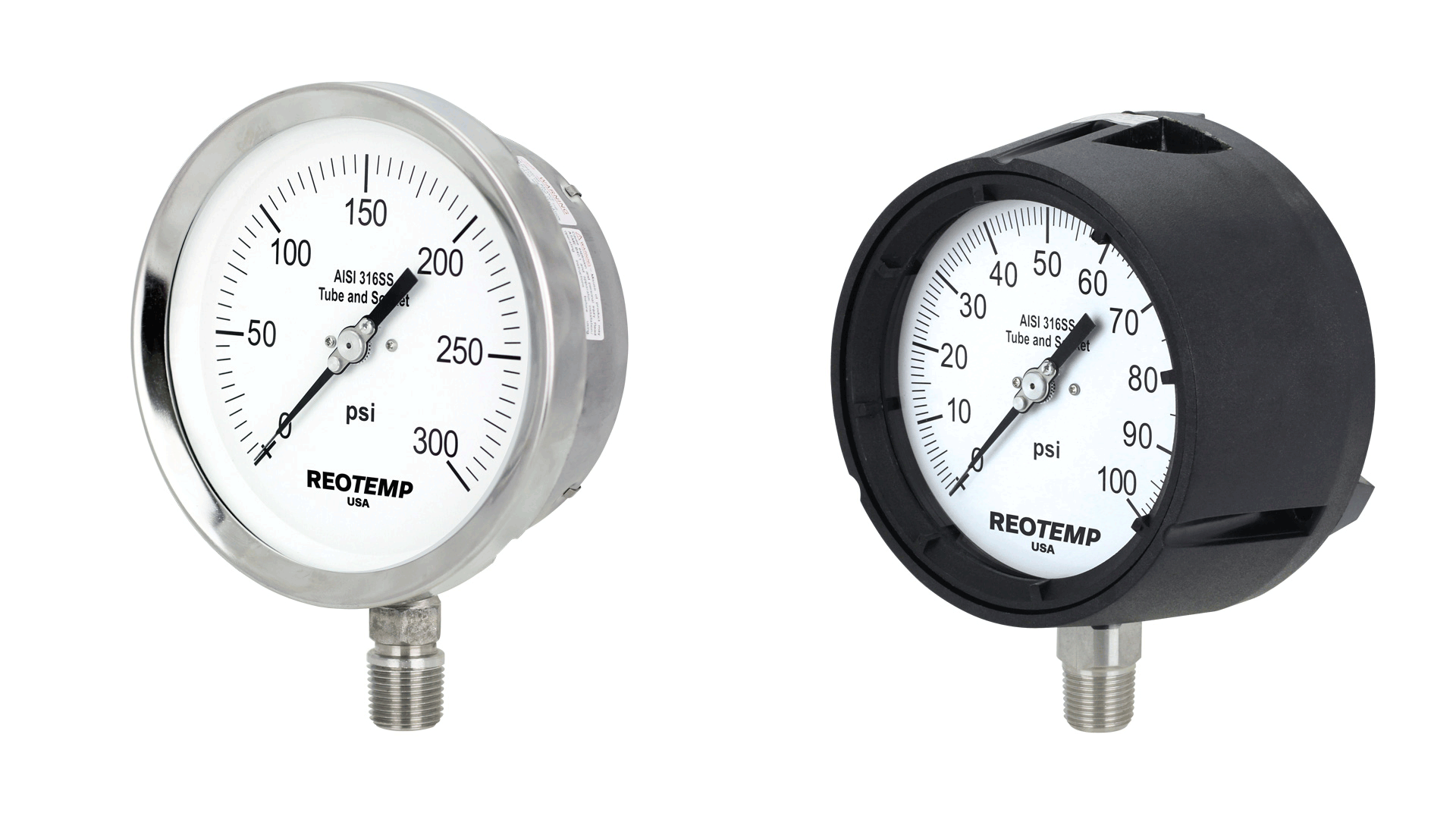

A process pressure gauge is a vital instrument used to measure the pressure of gases or liquids in a contained system. It typically consists of a dial displaying pressure readings in units such as pounds per square inch (psi), bars, or pascals, and a bourdon tube or diaphragm mechanism that responds to pressure changes.

Components of a Process Pressure Gauge:

  1. Dial: The face of the gauge where pressure readings are displayed.
  2. Pointer: Indicates the current pressure value on the dial.
  3. Bourdon Tube or Diaphragm: These are the sensing elements that convert pressure into mechanical movement, which is then displayed on the dial.
  4. Case: The housing that protects the internal components from damage and environmental factors.
  5. Connection: The point where the gauge is attached to the system being measured.

When to Use a Process Pressure Gauge:

  1. Safety Monitoring: In industries where high-pressure systems are prevalent, such as oil and gas, chemical, or nuclear power plants, process pressure gauges are crucial for ensuring safe operating conditions.
  2. Process Optimization: Monitoring pressure is essential for optimizing production processes.
  3. Equipment Performance: Pressure gauges are often used to monitor the performance of various equipment such as pumps, compressors, and boilers.
  4. Regulatory Compliance: Many industries are subject to regulations governing pressure levels to ensure environmental protection and worker safety.


Process pressure gauges are indispensable tools for monitoring and controlling pressure in industrial processes. By understanding when and why to use process pressure gauges, industries can safeguard their operations and enhance overall productivity. Sanitary Fittings is happy to offer a wide range of pressure gauges and temperature gauges.
